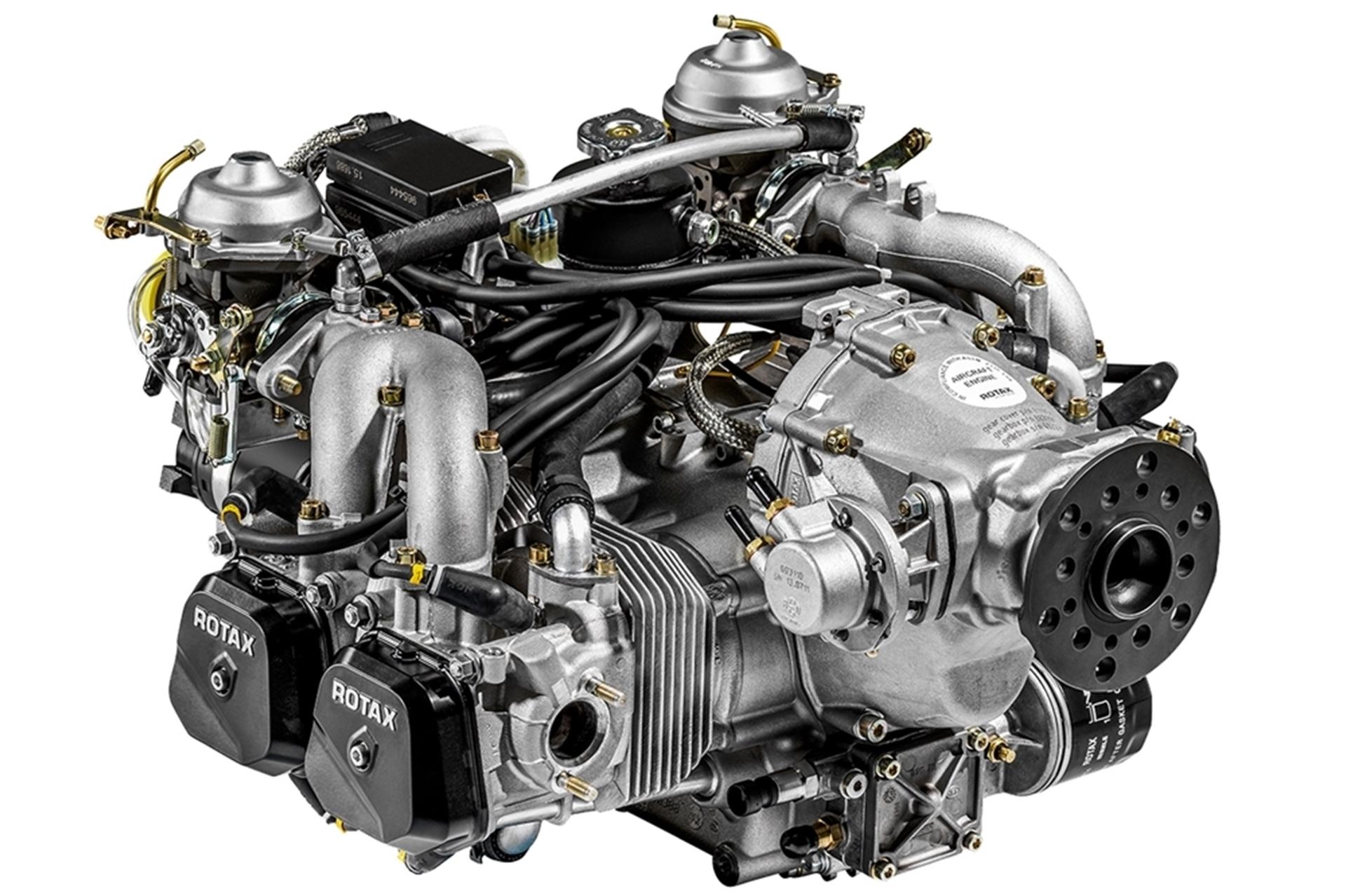

ROTAX 912UL

A.K.A.	912A, 912F
Performance	81HP (59.6kW) @ 5800 RPM
Torque	103Nm (75.9 lb·ft) @ 4800 RPM
Air	Aspirated
Fuel	Twin carburettor
Displacement	1211cc (73.9 in³)
Compression	9 : 1
Weight	55.4kg (122.1 lb)

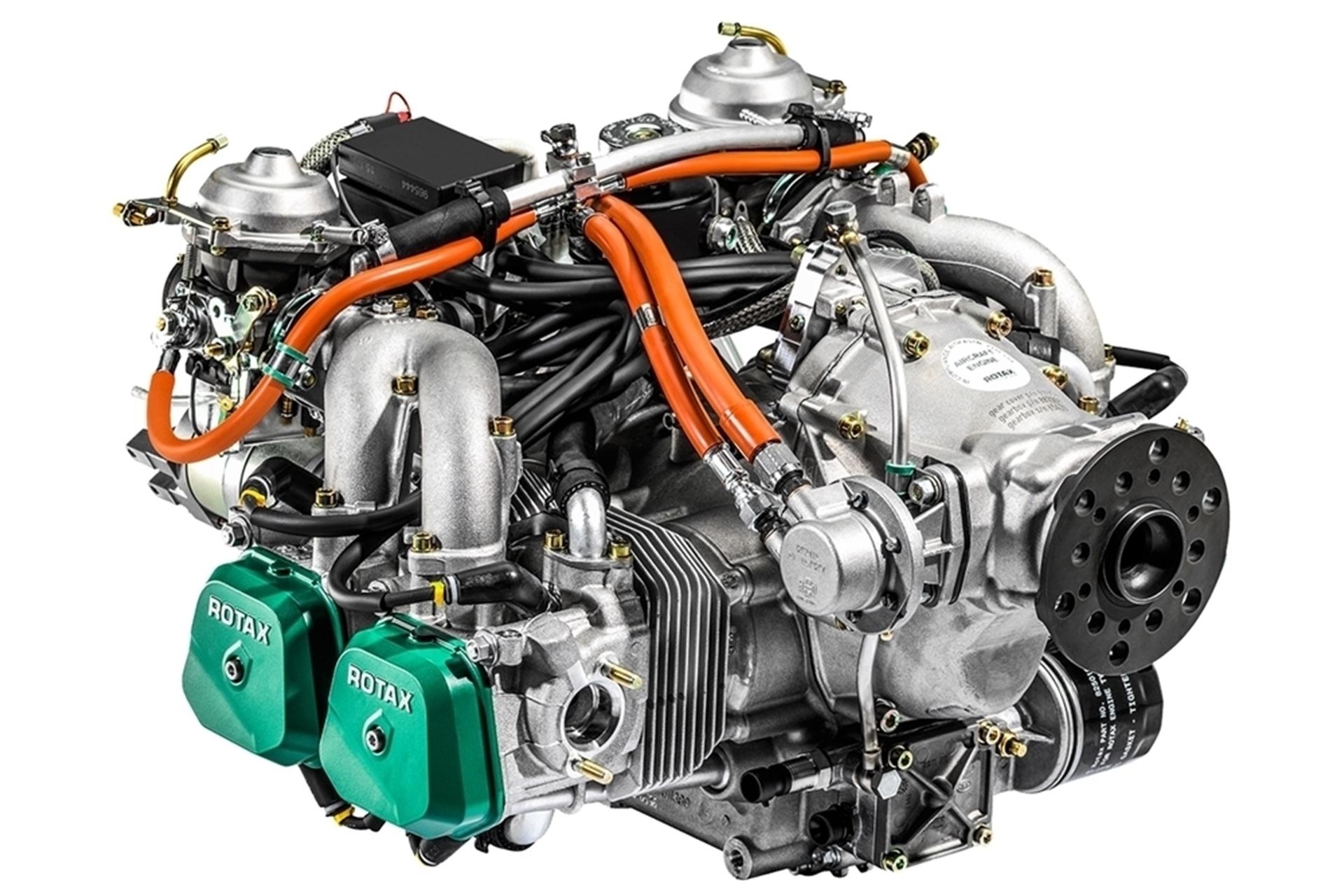

ROTAX 912ULS

A.K.A.	912S, 912ULSFR
Performance	100HP (73.5kW) @ 5800 RPM
Torque	128Nm (94.0 lb·ft) @ 4800 RPM
Air	Aspirated
Fuel	Twin carburettor
Displacement	1352cc (82.6 in³)
Compression	10.5 : 1
Weight	56.6kg (124.8 lb)

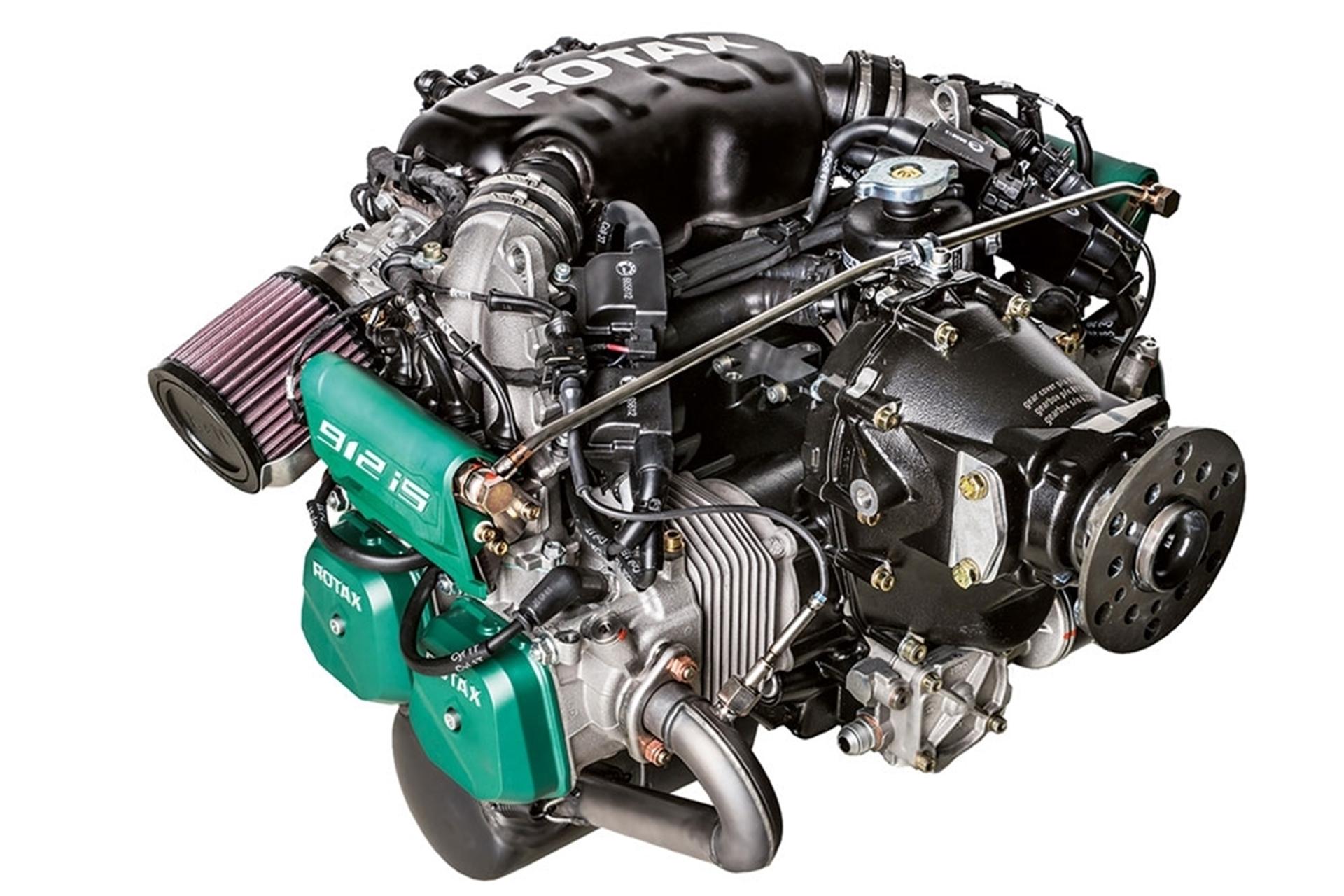

ROTAX 912iS

A.K.A.	912iS Sport, 912iSc Sport
Performance	100HP (73.5kW) @ 5800 RPM
Torque	132Nm (94.0 lb·ft) @ 5000 RPM
Air	Aspirated
Fuel	Manifold injection
Displacement	1352cc (82.6 in³)
Compression	10.5 : 1
Weight	63.6kg (140.2 lb)

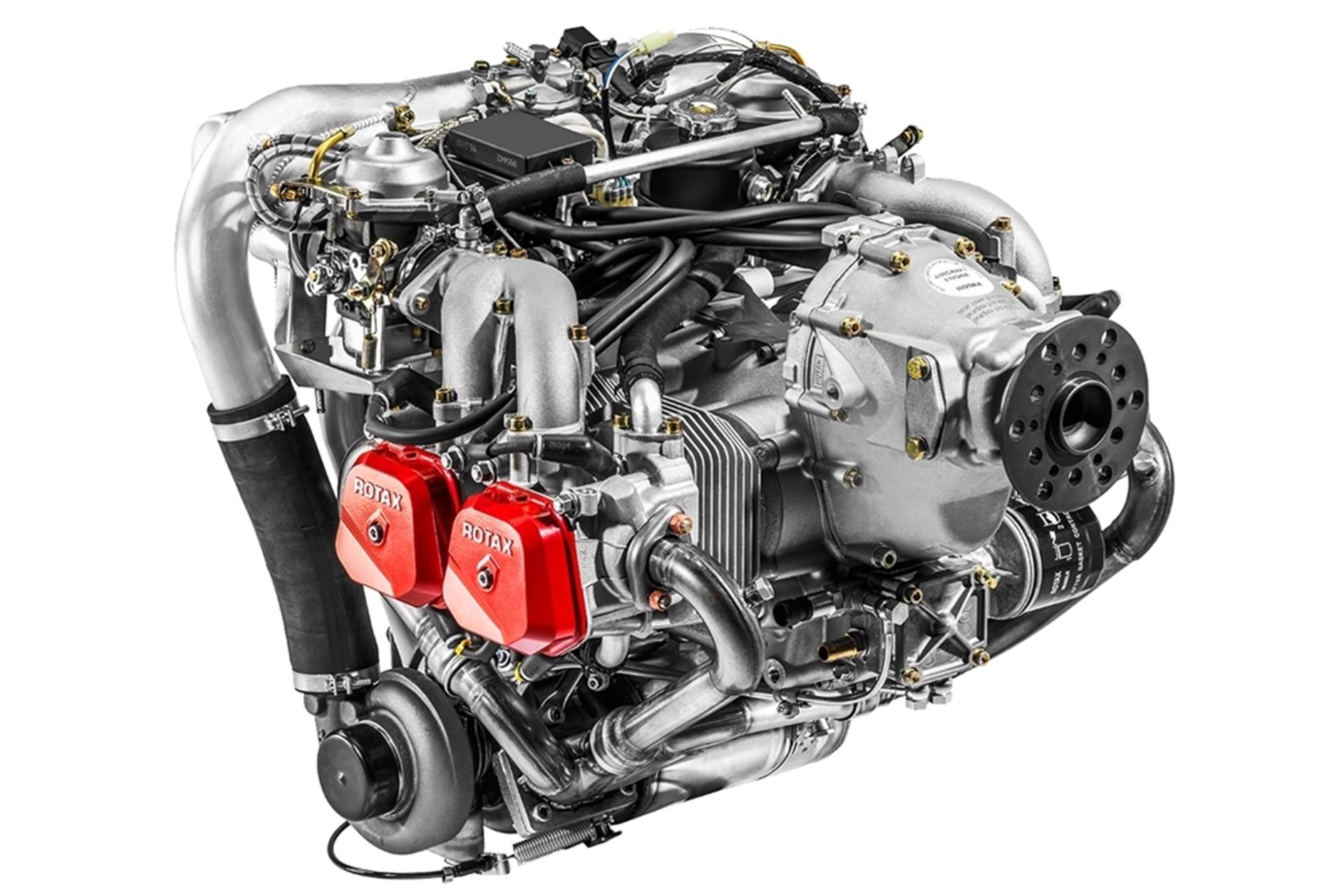

ROTAX 914UL

A.K.A.	914F
Performance	115HP (84.5kW) @ 5800 RPM
Torque	144Nm (106 lb·ft) @ 4800 RPM
Air	Turbocharger
Fuel	Twin carburettor
Displacement	1211cc (73.9 in³)
Compression	9 : 1
Weight	64kg (141 lb)

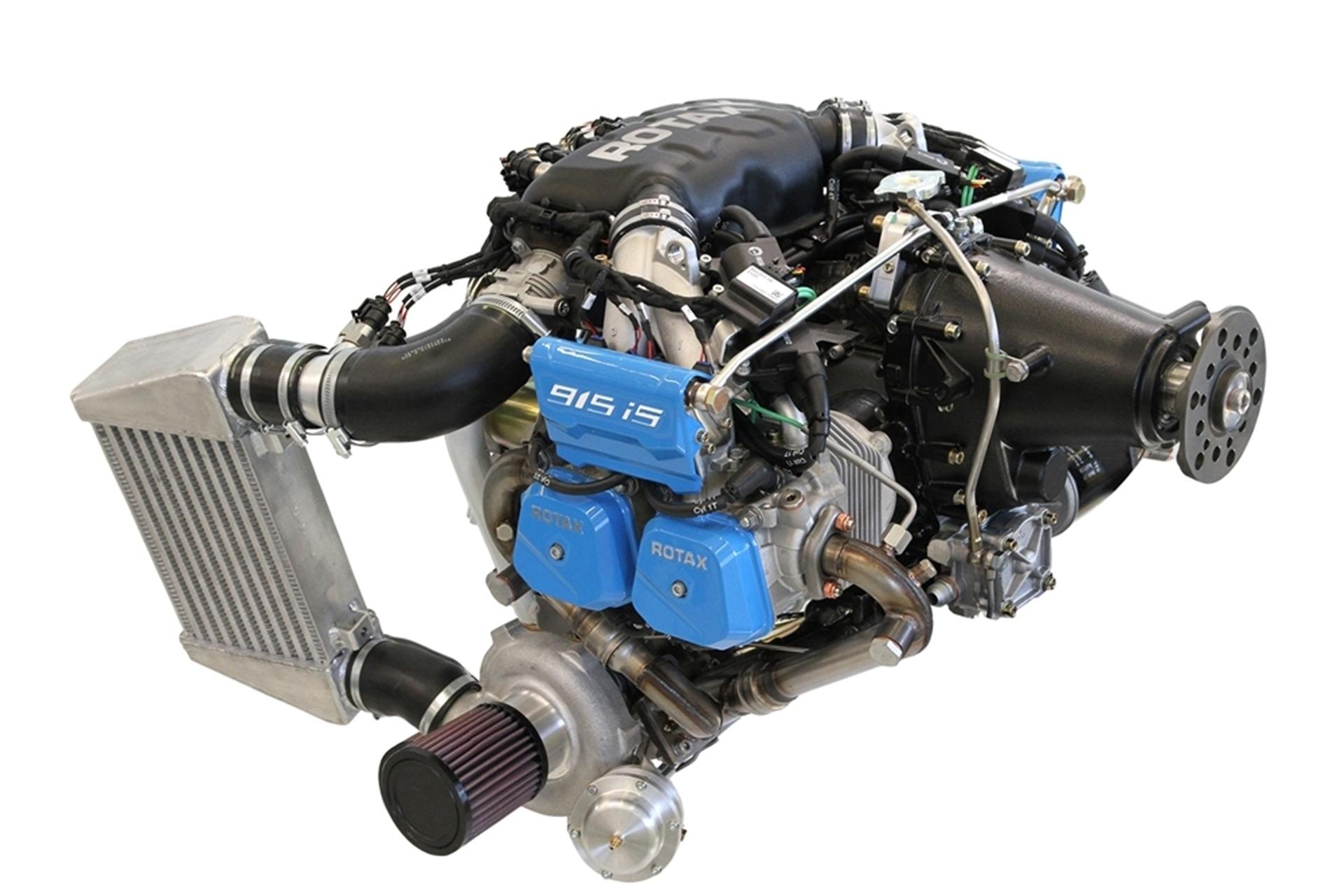

ROTAX 915iS

A.K.A.	915iSc
Performance	141HP (104kW) @ 5800 RPM
Torque	182Nm (134 lb·ft) @ 5500 RPM
Air	Turbocharger
Fuel	Manifold injection
Displacement	1352cc (82.6 in³)
Compression	8.2 : 1
Weight	85.8kg (189 lb)

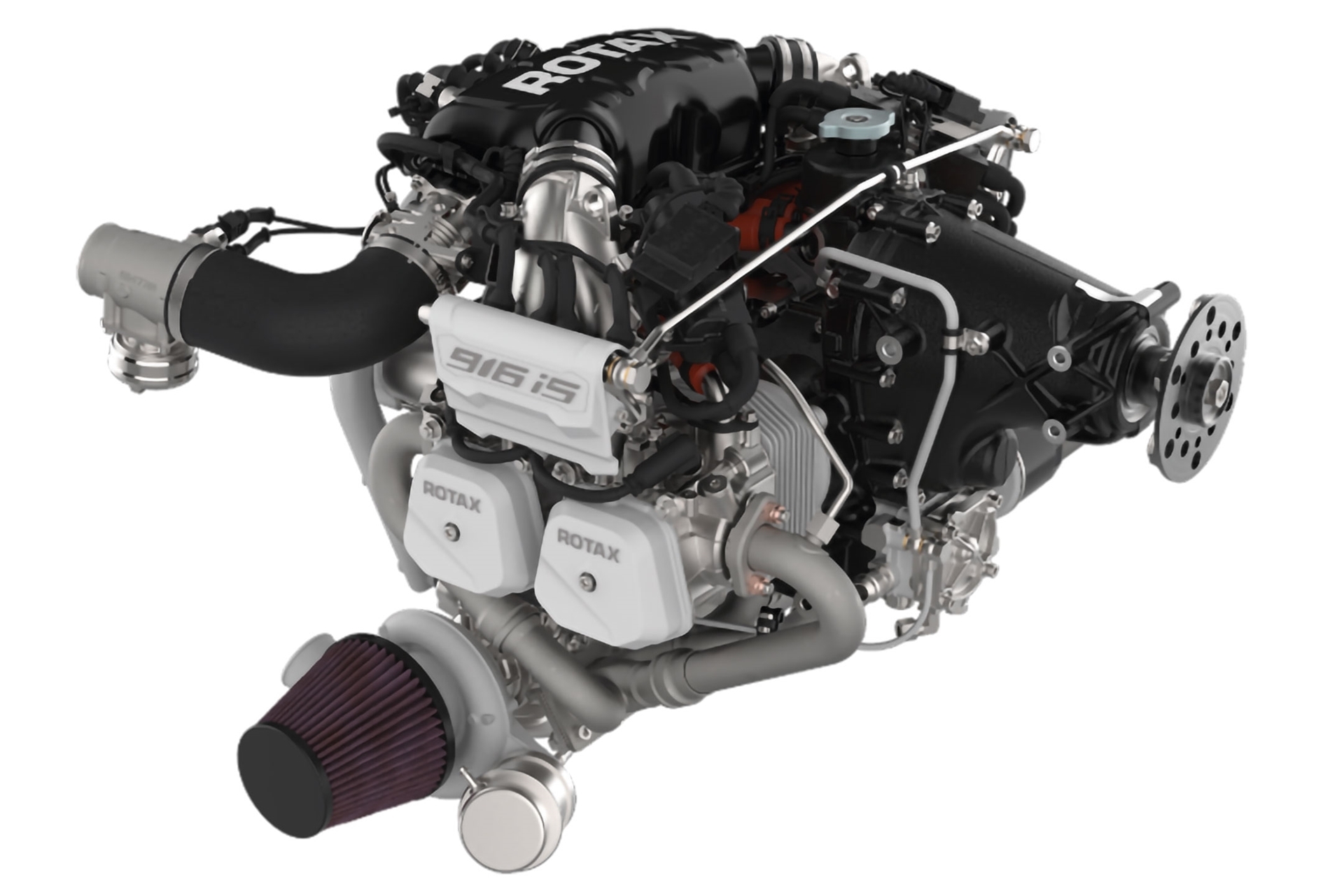

ROTAX 916iS

A.K.A.	916iSc
Performance	160HP (117kW) @ 5800 RPM
Torque	193Nm (142 lb·ft) @ 5500 RPM
Air	Turbocharger
Fuel	Manifold injection
Displacement	1352cc (82.6 in³)
Compression	8.2 : 1
Weight	87kg (192 lb)

Service Schedule

MFL-025	25 hours since new	As MFL-100
MFL-050	50 hours (AVGAS only)	Oil change Oil filter check and change
MFL-100	100 hours or annually, whichever comes first	Spark plug check Magnetic plug check Oil change Oil filter check and change Turbocharger check Gearbox dampener check Fuel system check ECU sensor check Fuse box check Coolant check Hose check
MFL-200	200 hours	As MFL-100 plus... Cylinder leakdown check HT connector check Spark plug change Fuel filter change
MFL-600	600 hours	Not currently available
MFL-1000	1000 hours	Not currently available

MFL-025	25 hours since new	As MFL-100
MFL-050	50 hours (AVGAS only)	As MFL-100
MFL-100	100 hours or annually, whichever comes first	Carburettor balance Spark plug check Magnetic plug check Oil change Oil filter check and change Turbocharger check Coolant check Hose check
MFL-200	200 hours	As MFL-100 plus... Cylinder leakdown check Carburettor inspection Carburettor float check HT connector check Spark plug change
MFL-600	600 hours	Not currently available
MFL-1000	1000 hours	Not currently available

MFL-025	25 hours since new	As MFL-100
MFL-050	50 hours (AVGAS only)	Oil change Oil filter check and change
MFL-100	100 hours or annually, whichever comes first	Spark plug check Magnetic plug check Oil change Oil filter check and change Gearbox dampener check Fuel system check ECU sensor check Fuse box check Coolant check Hose check
MFL-200	200 hours	As MFL-100 plus... Cylinder leakdown check HT connector check Spark plug change Fuel filter change
MFL-600	600 hours	Not currently available
MFL-1000	1000 hours	Not currently available

MFL-025	25 hours since new	As MFL-100
MFL-050	50 hours (AVGAS only)	As MFL-100
MFL-100	100 hours or annually, whichever comes first	Carburettor balance Spark plug check Magnetic plug check Oil change Oil filter check and change Gearbox dampener check Coolant check Hose check
MFL-200	200 hours	As MFL-100 plus... Cylinder leakdown check Carburettor inspection Carburettor float check HT connector check Spark plug change
MFL-600	600 hours	Not currently available
MFL-1000	1000 hours	Not currently available
